|Maximum Depth||1 Meter|

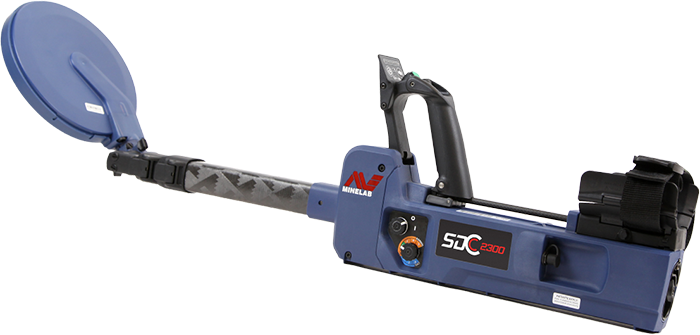

SDC 2300 from Minelab, is a compact waterproof metal detector suitable for detecting rough gold nuggets
and gold treasures with professional features at an affordable price.
SDC 2300 is a practical gold detector that works with pulse induction
technology to detect metal objects in general and natural gold in particular.
SDC 2300 is characterized by high sensitivity and great discovery of the smallest
grains of natural raw gold that do not exceed one gram in various natural terrain.
SDC 2300 includes many practical features to get a reliable results
including for example audio discrimination , waterproof design and high
sensitivity and other features.
SDC 2300 Features
– MPF Technology
MPF (Multi Period Fast) technology includes a rapid switching technology
for the pulsed induction between the transmission signal and the reception signal.
Therefore, the remaining transmission signal is minimal or weaker effect within
the reception cycle, and this helps in the discovery of sharp and clear gold
for very small for nuggets not exceeding one gram also.
– Compact High-Quality Design
The mechanical specifications of the SDC 2300 designed and tested according
to military standards.
Thus Minelab’s R&D experts select quality materials and make
sure the product is easy to operate also.
For example an important feature of the device is the ability to fold into a small portable
size that fits portable luggage and most backpacks.
As a result of device design according to military standards as a single piece
is designed to perform in the most difficult conditions with no need
for assembly or installation.
The device can be fully immersed in water up to 10 inches (3 meters) underwater
for detection in riverbeds and beaches, therefore allowing the prospector to move easily
from land to water.
– Gold Patches Hunting
So the prospector can search quickly and efficiently in places that are difficult
to reach and far to find those adjacent blocks of gold ores that are in the form
of clusters of grains or in the form of golden veins within the composite rocks also.
– High Sensitivity
SDC 2300 is very sensitive to the small gold scattered in high-mineralized grounds.
Prospectors often lose this gold with both VLF and PI detectors due to difficult
ground conditions and the size of fine gold.
Prospector can now discover lost small gold in previously searched areas.
These small gold discoveries could lead the way to new corrections
and places with larger deposits of gold.
– Audio Discrimination
The gold detection sound response within the SDC 2300 provides discrimination
in the form of a acoustic tone when the coil or search coil passes over targets
of ferrous or non-ferrous metal object.
However depending on the amplitude of the tone and the duration, a distinction
can be made between discovering targets located at shallow depths
or targets at greater depth.
Since a louder and shorter time indicates a shallow target, and vice versa,
a quieter tone within a longer period of time indicates a deep and larger target.
So, that target that makes a choppy sound multiple times is always a target close to
the surface or at the surface of the ground.
This device is available at the best price through our company: Orient Technology Group
for all categories of prospectors, from amateurs and beginners to professional prospectors and at the best prices ever.
We provide a flexible and easy way to purchase and various payment methods that include electronic payment,
and we offer monthly the best offers on our devices and products.
Just contact us through the numbers available on our website to know the prices and inquire about any additional information.
– Main Electronic unit
– Search Coils
– Demountable handle
– 8 V Battery
– Training CD
– User Manual
– Carry Bag
– 1 year warranty from Minelab
|Technology||MPS, DVT & SETA|
|Frequency/Transmission||Bi-Level, Advanced Pulse Induction|
|Coil (standard)||11″ Double-D AND 11″ Monoloop|
|Audio Output||6.35mm (1/4″) headphone/speaker jack.|
|Headphones Supplied||Koss 100 ohm headphones.|
|Visual Display||LCD screen 64×128 pixels, transflective|
|Backlight||Yes with adjustable automatic ‘time-out’.|
|Memory||Setting changes saved automatically and remain until changed or reset. Factory Presets can be restored on start-up.|
|Detect Modes||General, Deep & Custom. Custom Modes are: Hi Mineral, Hi Trash, Patch & Test A.|
|Discrimination||Iron Reject: range 1 to 10 & All Metal.|
|Timings||Enhance, Normal, Sensitive Smooth, Salt Course, Sensitive Extra & Sharp.|
|Audio tone||Variable Control 1 to 100.|
|Audio Type||Quiet, Normal, Deep & Boost.|
|Ground Balance||Automatic Ground Balance, Fixed & Tracking: Slow, Medium & Fast.|
|Ground Balance Type||General, Specific & Ground Balance Off.|
|Sensitivity Adjust||Rx Gain 1 to 15|
|Tune / Noise Cancel||Automatic & Manual 0 to 255|
|Threshold||Adjustable turn control.|
|Battery||Lithium-Ion with built-in amplifier (up to 12 hrs). Supplied with mains and vehicle charger.|
|Length||1100mm – 1300mm (43.3″ – 51.2″).|
|Weight||2.4kg (5.3lbs) (ex. battery).|
