|Operating Principle||Geo Electrical|
|Maximum Depth||100 Meters|
GeoSeeker Mini is stripped down version of its brother GeoSeeker the best groundwater detector in the world.
It offers great features for groundwater detection and cavity detection at lower price .
GeoSeeker Mini is stripped down version of its brother GeoSeeker
the best groundwater detector in the world.
GeoSeeker Mini water detector use geoelectrical measurement procedure technology
based on practical test of German companies.
So GeoSeeker Mini device offer a great solution to any farmer or even mining companies
for detection of groundwater resources up to 100-meter underground.
In addition to its ability to detect water resources including fresh water,
drink water and salt water, however it is even able to find and detect underground cavities
such as tunnels, hidden rooms and cavities.
Geoseeker Mini Features
Geoelectrical Measuring Technology
GeoSeeker Mini groundwater detector depends on geoelectrical measurement
technology based on measuring of electrical resistivity characteristics of
underground water resources or cavities.
Groundwater has a very good conductivity thus the device measures the conductivity
changes in the specific ground area to indicate presence of water resources.
However a bad conductivity is a hint or indicator of cavities existences
such as chambers, tunnels, graves and so on.
So, based on conductivity values user can use the device either as
water detector or cavity detector at reasonable price also.
Water Resources Detection
GeoSeeker Mini has many versatile applications in groundwater detection for
water finders like well builders, and also drilling companies
and agriculture companies or farmers or even building contractors.
The applications of the device can be summarized as:
- Finding water deposits include fresh water, drinking water
- Know ground water level also
- Detect underground watercourse, water veins
- Find underground water streams, headwaters
The capability of cavity detection is useful for archaeologists, historians
treasure hunters, geotechnical engineering, military services and building contractors also.
Some examples about types of cavities includes:
- caves, tunnels
- galleries and manholes
- chambers, sepulchers, tombs
- bunkers, vaults, cellars, rooms
GeoSeeker Mini includes an easy to use updated graphical user interface
with a screen that support touch for easy quick operation also.
After selection of measurement depth and amount of scanning points,
then simple graphical instructions guide through the measuring procedure.
Placing The Electrodes
During the measurement the electrodes have to be replaced several times
to measure the ground resistance at certain places.
Then all instructions can be read from the color display screen, where the results
are presented after each single scan.
Then At the very end of a measurement the final result is shown as
a graphical 2D scan image.
Graphical Data Visualization
The results of the measurement are visualized in a 2D diagram
or in more simple representations using unambiguous pictures also.
However after finishing a geoelectrical measurement, the final result is
calculated to generate a representative 2D scan image of the
So with the pictographs in the lower display area,
users can read directly the diagram: The colors in the scheme
indicate water deposits (such as blue with water drops) and/or
detected cavities (red with tunnel symbol).
This device is available at the best price through our company: Orient Technology Group
for all categories of prospectors, from amateurs and beginners to professional prospectors and at the best prices ever.
We provide a flexible and easy way to purchase and various payment methods that include electronic payment,
and we offer monthly the best offers on our devices and products.
Just contact us through the numbers available on our website to know the prices and inquire about any additional information.

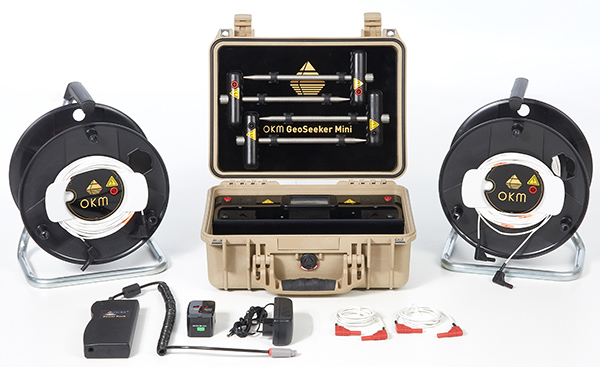

- Control unit with touchscreen
- 4 Electrodes
- Power Pack with charger and travel adapter
- 2 Voltage Cable (10 m)
- 2 Power cable drum (Ø 290 mm)
- Connecting Cable (2 m)
- User’s manual
|Dimensions (H x W x D)||410 x 340 x 180 mm|
|Input voltage (max.)||11 – 13 V DC / 30 W|
|Display||3.5” Resistive touch, 480 x 320 Pixel|
|Display CPU||Cortex M3, 32 MHz, 128 KB RAM|
|Data memory||4 GB|
|Sample rate||4096 Hz (64-fold oversampling of 512 values)|
|Operating time||approx. 6 – 8 h|
|CPU||80 MHz Cortex M3|
|Effective Range||(differential) –1400 to +1400 mV|
|Measurement Period per Scan Point||min. 16 s|
|Output||320 V / 0.4 A|
|Input Resistance (static)||approx. 12 MΩ|
