|Operating Principle||3D Imaging + VLF|
|Maximum Depth||10 Meters|

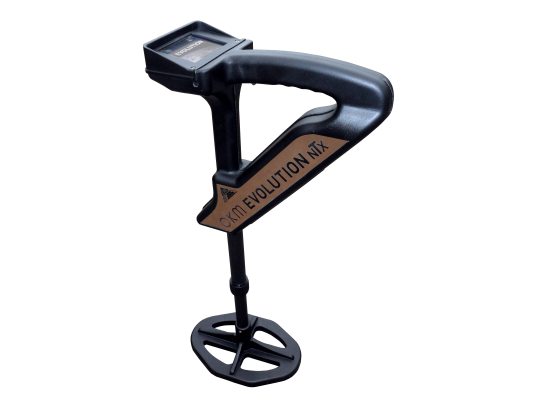

OKM Evolution NTX is a hybrid metal detector that combine best features of electromagnetic detection system
with powerful 3D imaging system at affordable price.
OKM Evolution NTX is a unique metal detector device because it is
for first time in metal detection device includes a 3D ground scanner
functions with typical electromagnetic metal detector in one package.
As a result Evolution NTX offer a perfect device for any serious and professional
prospectors and treasure hunters and with low price also.
Evolution NTX has a new modern design suitable for ergonomic use
and incorporate a new features such as new high-resolution touch screen
and unique search coil design for best performance.
Therefore Evolution NTX considered a multi-purpose and versatile metal detector with powerful
built in 3D ground scanning capabilities for all applications of metal detection and gold prospecting.
Evolution NTX Features
Device Applications & Uses
Evolution NTX metal detector can be used by treasure hunters, gold prospectors and metal detectorists
and even archaeologists who are looking for buried objects, hidden artifacts or other lost items such as:
- Ancient buried treasures from ancient civilizations such as treasure chests.
- Lost golden or metallic objects such as jewelries including rings.
- All types of ferrous metals including iron and magnetic metals.
- Hidden underground cavities and anomalies such as tunnels.
Evolution NTX used as multi-function device either as traditional metal detector or as 3D ground scanner also.
For 3D ground scanning it uses a powerful telescopic probe (sensor) for conducting the 3D ground scan
up to 10 meters underground .
However, it uses a special designed search coil when it used as metal detector that depends on sending
an electromagnetic field and receiving reflected field from buried metal object.
Evolution NTX is the first device to combines typical VLF metal detector functionality with 3D ground scanning search system also
So, the device includes two operating modes that present the functions and uses of device in either two cases :
Live Sound Mode
Live sound mode used activated by installing the search coil, and selecting this mode from
touch screen of device , thus the device act as VLF metal detector
to find all buried ferrous and non-ferrous metal objects such as rings, coins, relic at small depths
So, In this mode the device makes a sound (acoustical output) upon detecting of any metallic objects,
beside that the device displays a graphical indication of received signals on its screen also.
3D Scan Mode
This operating mode used to perform a detailed 3D ground scanning for defined rectangular area using the measurement sensor (probe).
The user can adjust scan parameters such as scan line and pulses directly on touch screen as in following image :
The scan data is saved to the memory inside the main unit , so the user can transfer it to any computer.
with installed Visualizer 3D software , the data analysis software which used to display a 3D graphical representation
of scan data that present the real structure of the ground and its buried objects in this scan area.
By using Visualizer 3D program, the user can determine size and depth of potential treasures and findings before digging.
Evolution NTX includes a high-resolution colored display screen with touch support, so the user can use it
directly to adjust different settings of the device like choosing the operating mode or just to display many indicators depending on operating mode.
This device is available at the best price through our company: Orient Technology Group
for all categories of prospectors, from amateurs and beginners to professional prospectors and at the best prices ever.
We provide a flexible and easy way to purchase and various payment methods that include electronic payment,
and we offer monthly the best offers on our devices and products.
Just contact us through the numbers available on our website to know the prices and inquire about any additional information.

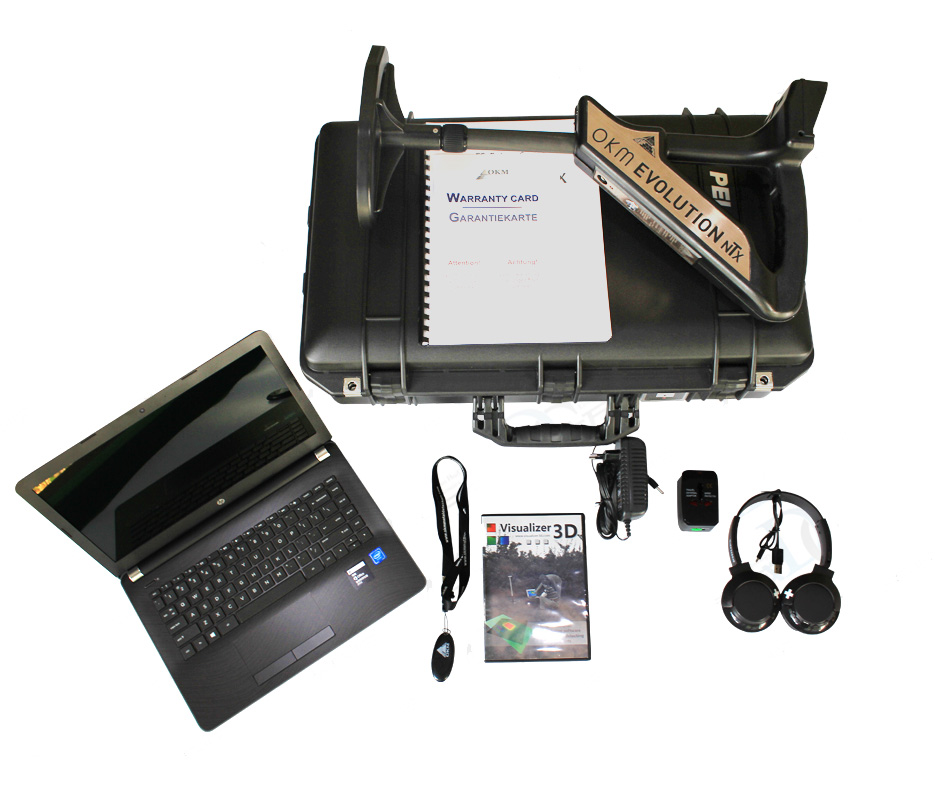

Evolution NTX Package Contents
- Control unit
- Charger for control unit
- Wireless headphones (Bluetooth)
- Windows Tablet PC
- Travel adapter
- USB bluetooth dongle
- User’s manual
- Waterproof and shock resistant Peli case
- 3D software ( “Visualizer 3D” )
|Dimensions (H x W x D)||540–810 x 150 x 280 mm|
|Weight||approx. 1.5 kg|
|Input voltage (max.)||19 V DC, 3.16 A, 60 W|
|Processor / Main CPU||Cortex M3, 32 MHz|
|Processor / Slave CPU||Cortex M0, 24 MHz|
|Display||3.5” Resistive touch, 480 x 320 Pixel|
|Display CPU||Cortex M3, 32 MHz, 128 KB RAM|
|Data memory||4 GB|
|Sample rate||1024 values / second|
|Measurement resolution||16 bit|
|Operating temperature||–10°C – 60°C|
|Storage temperature||–20°C – 70°C|
|Audio||Internal speaker / Bluetooth|
|Technology||GST / EMSR|
|Sensor technology / Coil technology||SCMI-15-D / VLF|
|Air humidity||5% – 75%|
